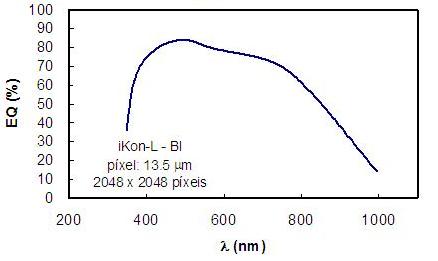

Eficiência Quântica e Linearidade do CCD Andor Ikon-L
Publicado em
14/06/2021 09h49
Atualizado em
16/02/2022 14h16
l (nm) EQ (%) l (nm) EQ (%)
349.15 36.42 703.95 73.84
350.22 38.96 711.68 73.40
351.29 41.83 720.51 72.63
352.36 43.93 728.25 71.96
354.54 46.03 735.98 71.30
355.62 47.90 743.71 70.64
356.69 49.67 750.35 69.76
357.77 51.88 755.88 68.98
358.85 53.53 763.61 67.99
358.83 54.64 769.14 67.11
361.02 55.74 774.67 66.11
362.11 57.17 780.20 65.12
363.19 58.94 787.95 63.91
365.38 60.04 791.27 63.02
367.56 61.81 795.69 62.25
370.85 63.47 800.12 61.48
373.03 65.01 804.55 60.38
374.12 66.11 808.97 59.27
377.41 67.44 815.61 58.06
380.71 68.87 820.04 57.17
381.80 69.87 826.68 55.96
386.19 70.97 833.32 54.30
390.59 72.19 839.96 52.76
394.98 73.95 845.50 51.55
401.58 75.28 852.14 50.11
408.19 76.49 858.78 48.45
413.69 77.48 865.42 46.91
423.60 79.14 869.85 45.47
431.31 80.35 876.50 44.04
436.81 81.13 880.93 42.83
443.43 81.68 888.67 41.39
452.24 82.45 892.00 40.18
465.47 83.33 896.43 38.85
477.60 83.89 903.07 37.64
490.84 84.22 906.39 36.87
508.50 84.00 909.71 35.87
518.43 83.66 914.15 34.33
529.48 82.78 920.79 32.78
539.42 81.90 929.64 31.02
553.78 80.79 934.08 29.36
564.83 80.13 939.61 28.04
576.97 79.36 942.93 27.15
586.91 78.92 947.37 25.72
599.06 78.48 954.00 24.61
608.99 78.04 960.65 22.96
618.93 77.81 965.08 21.85
628.87 77.26 970.61 20.42
644.32 76.82 973.94 19.21
656.46 76.27 979.48 17.77
668.61 75.83 986.12 16.56
679.65 75.28 989.44 15.56
691.80 74.61 994.97 14.46
Exposição (s) Contagens sigma
1 729 23.18
2 1426 32.33
4 2836 49.28
8 5687 76.82
16 11432 128.8
32 22998 229.3
64 46082 427.1
128 64992 2076
256 64992 2083
